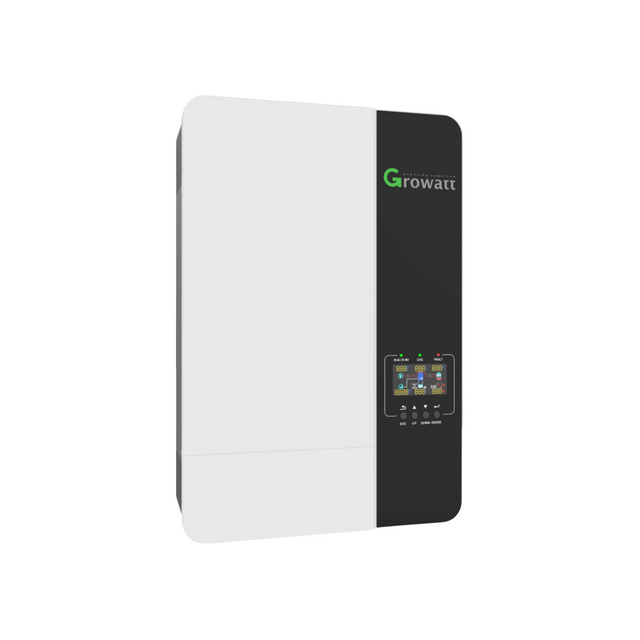

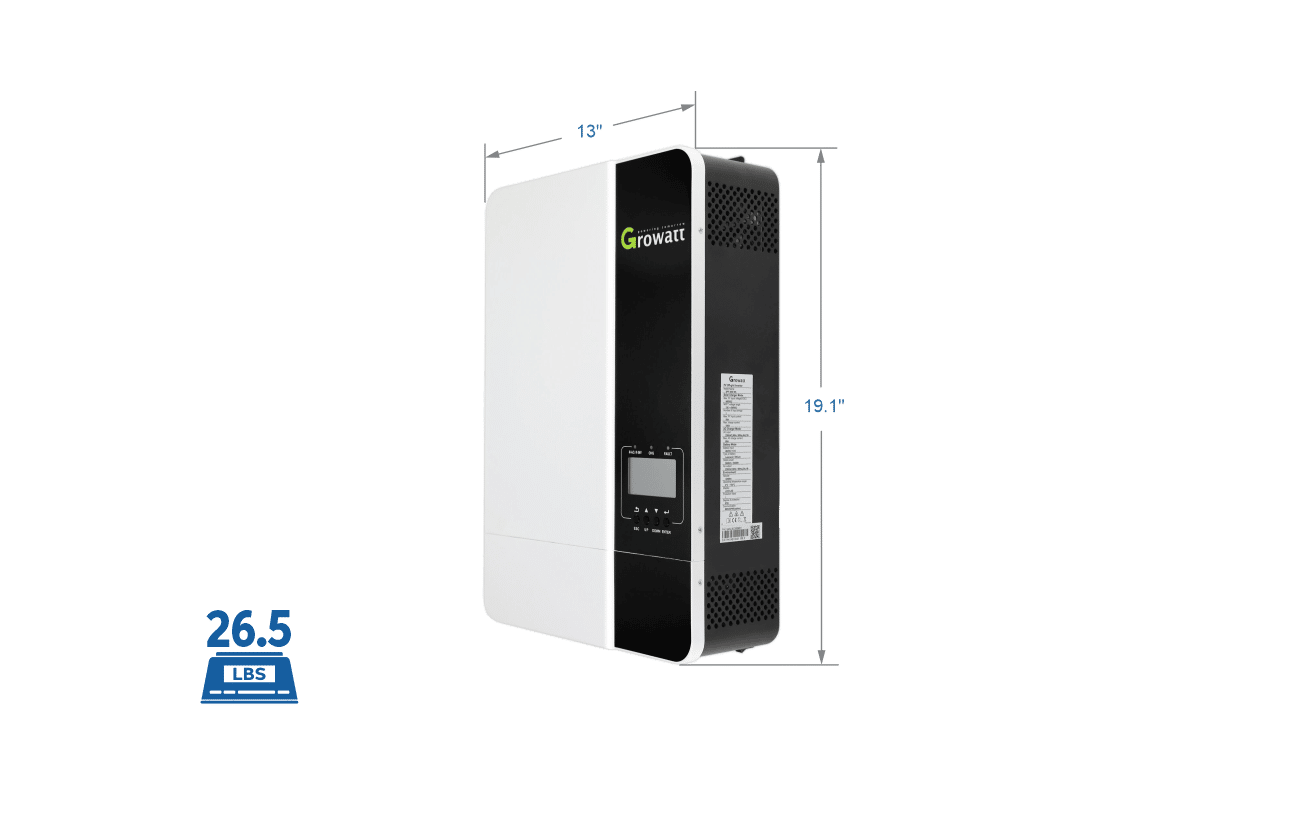

3000 Watts /3KW Inverter/ Charger 48 Volts

$198,000



  • INVERTER OUTPUT
    Rated output: 3000 watts
    Efficiency: 93%
    Waveform: Pure Sine Wave
  • BATTERY MODE:
    Battery Input: 48VDC
    Type of Battery: Lithium, Lead acid
  • SOLAR CHARGER
    Maximum PV input Voltage: 250VDC
    MPPT Voltage Range: 120-250VDC
    Max PV Input Current: 18A
    Max. Charge Current: 80A
  • AC CHARGER
    Max. AC Charge current: 40A
    AC Input: 120VAC, 50Hz/ 60Hz, 40A
  • Integrated MPPT Charge controller
  • Equalization charging function
  • work with or without battery
  • PV input voltage up to 450VDC
  • Configurable grid or solar input priority
  • Optional Wifi/GPRS remote monitoring
  • Support parallel operation for capacity expansion up to 30KW
  • PV and Grid power the load jointly if PV energy is insufficient
  • Flexibly schedule the inverter charging and discharging time







Guaranteed Safe Checkout

KEY FEATURES

High Yields

– DC/AC ratio up to 1.2

– 2 times peak power ability

– Output power factor up to 1.0

Scalable & Flexible

– Up to 6 units in parallel for capacity extension

– Multi-customized modes for diverse scenarios

– Compatible with lithium, lead-acid and GEL batteries

Smart & Reliable

– Support WiFi and GPRS remote monitoring

– PVkeeper platform for local commissioning

– Timing charging and output control



Multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module all in one machine. Perfect for off grid backup power and self-consumption applications.The 250V MPPT makes fewer strings, no combiner box and power can travel longer at high voltage, which makes it perfect for easier install.
